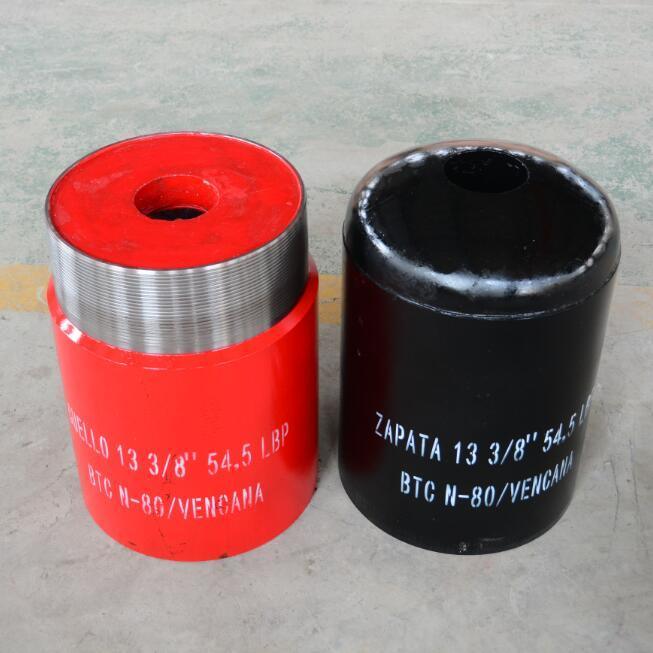

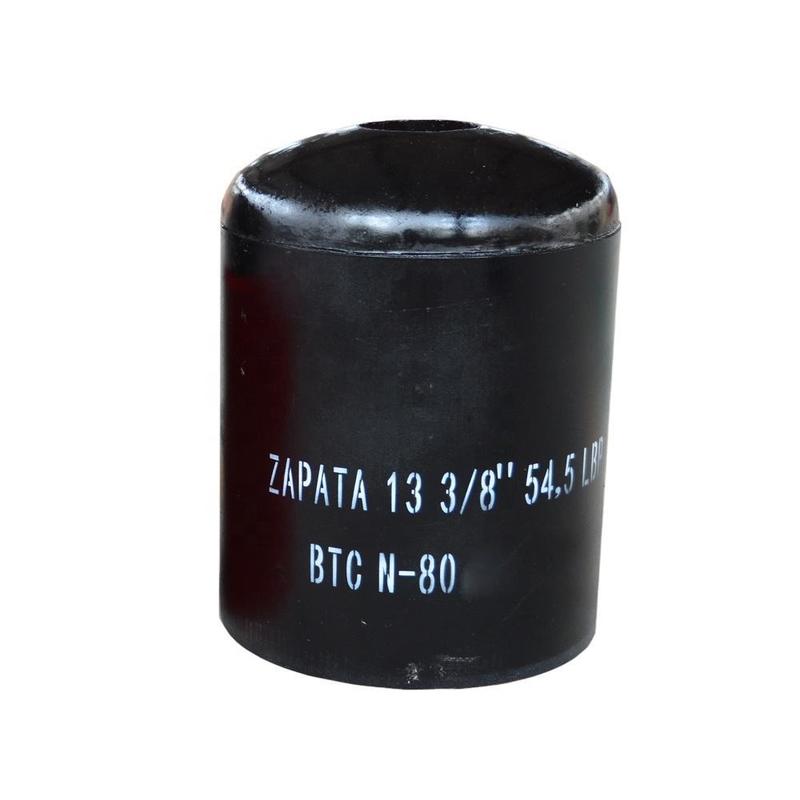

API 5CT Double Valve Casing Float Shoe 2KG for Well Drilling
Basic Properties
Place of Origin:
Китай
Certification:
ISO API
Trading Properties
Minimum Order Quantity:
1
Specifications
| Weight: | 2 кг | Core Components: | Клапан |
| Valve type: | Один клапан и двойной клапан | Machine Type: | Буровой инструмент |
| Processing Type: | Ковкость | Size: | 5 1/2 ", 7", 9 5/8 ", 13 3/8" |
| Bore O.D.: | 6 ", 7 5/8", 10 5/8 ", 14 3/8" | Bore I.D.: | 4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8" |
| Min Bore: | 2 ", 2 3/8" | Thread Type: | 5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG |
| Pressure Rating: | 4351, 3626 фунтов/дюйм | Standard: | API 5 CT |
| Color: | Индивидуально | Use: | Хорошо бурение |
| Applicable Industries: | Энергия и добыча полезных ископаемых | ||
| High Light: | API 5CT casing float shoe,double valve float shoe for drilling,well drilling float shoe 2KG |
||
Характер продукции
Factory Cheap Price Differential Fill up Double Valve Casing Float Shoe
Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.
Specifications
| Name | Size(in) | Bore O.D.(in) | Bore I.D.(in) | Min Bore Parameter(in) | Thread Type | lb(in2) |
|---|---|---|---|---|---|---|
| Float Collar | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 | |
| Float Shoe | 5 1/2" | 6" | 4 3/4" | 2" | 5 1/2" LCSG | 4351 |
| 7" | 7 5/8" | 6 1/4" | 2 3/8" | 7" LCSG | 3626 | |
| 9 5/8" | 10 5/8" | 8 5/8" | 2 3/8" | 9 5/8" LCSG | 3626 | |
| 13 3/8" | 14 3/8" | 12 3/8" | 2 3/8" | 13 3/8" LCSG | 3626 |
