Name: API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling
Brand: Jiangsu Service Petroleum Technology Co., Ltd
Price: 50 USD
Availability: InStock

Дом > Продукты > Цементируя оборудование поплавка >

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

114.3mm Float Shoe

150°C Seal Float Collar

204°C Seal Cementing Float Equipment

Место происхождения:

Цзянсу, Китай

Фирменное наименование:

SWS

свяжитесь мы

Спросите цитату

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Детали продукта

Измерение:

50*30*30

Масса:

10 кг

Основные компоненты:

Клапан

Тип клапана:

Один клапан и двойной клапан

Тип обработки:

Ковкость

Спецификация:

2-3/8 ~ 20"

Тип потока:

BTC\LTC\ Специальная нить\EU\NU

Сталь:

N80\L80\P110

Загрязняет OD:

6 ", 7 5/8", 10 5/8 ", 14 3/8"

Идентификатор була:

4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"

Мин с надписью:

2 ", 2 3/8"

Тип потока:

5 1/2 "LCSG, 7" LCSG, 9 5/8 "LCSG, 13 3/8" LCSG

Рейтинг давления:

70 МПа

Температурная оценка:

204°C

Размер клапана:

70 мм и 90 мм

Родственные продукты

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Получите самую лучшую цену

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Получите самую лучшую цену

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Получите самую лучшую цену

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

Получите самую лучшую цену

свяжитесь мы

86-519-83553967

Leo@service-js.com

86-519-83553967

Контакт теперь

Характер продукции

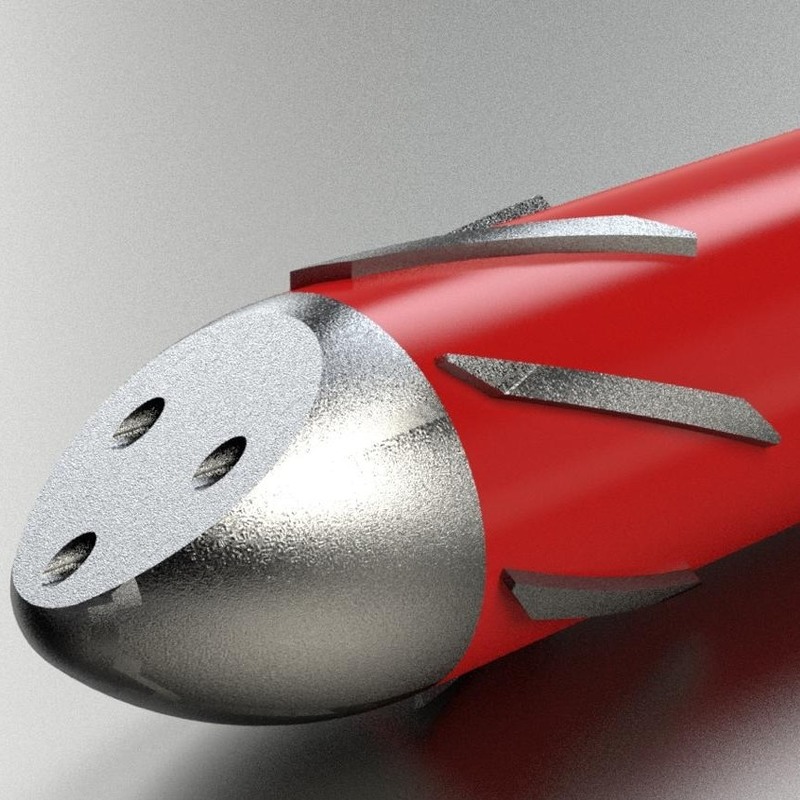

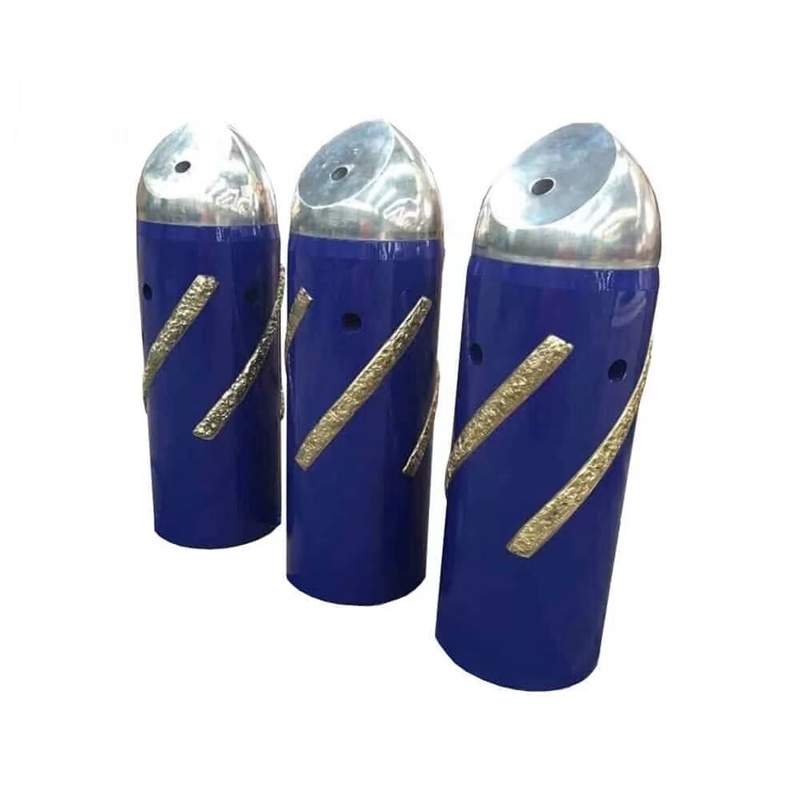

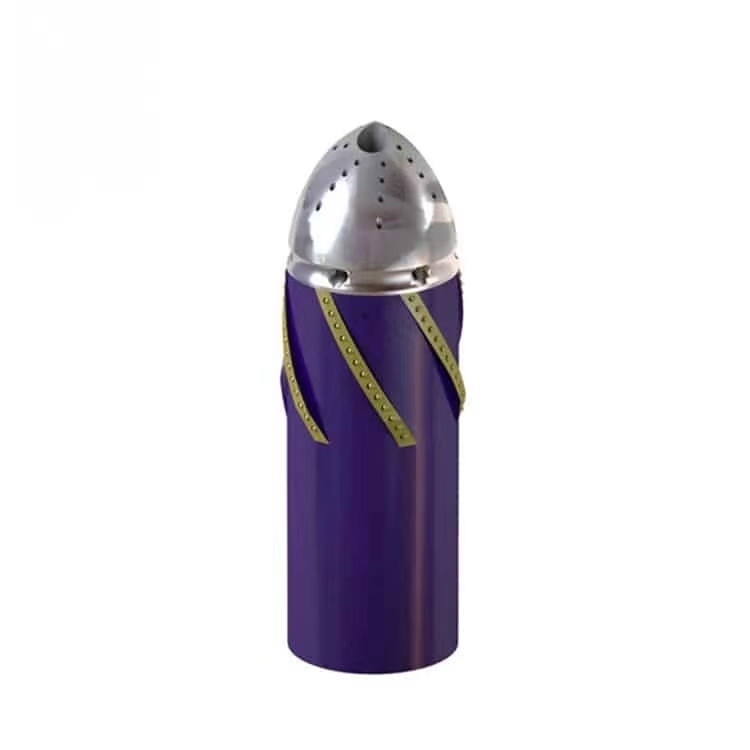

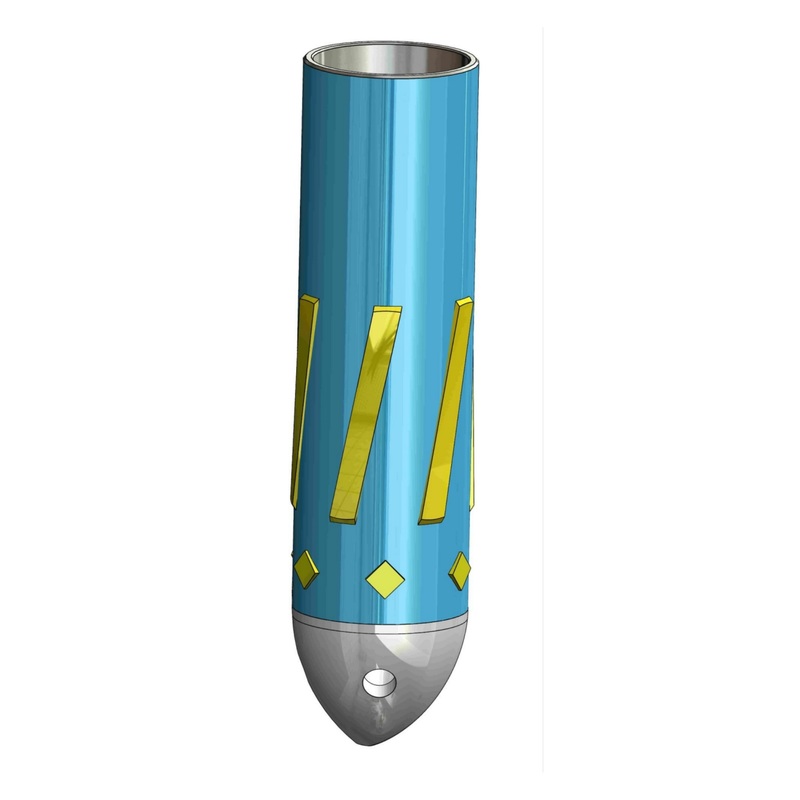

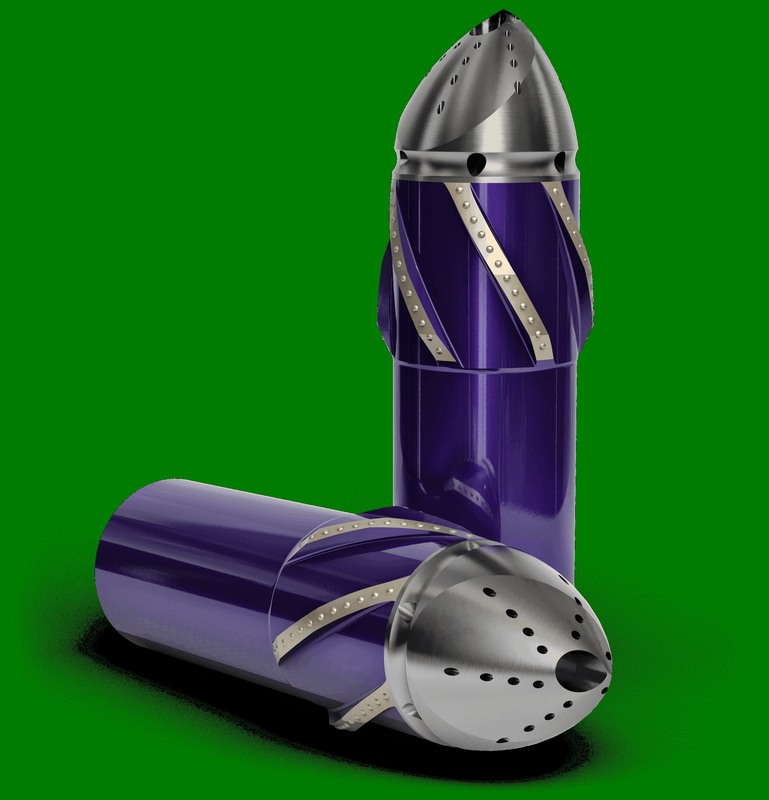

API 4-1/2" 114.3mm Standard Nose Float Shoe Equipment

High-performance reamer shoe, float shoe, and float collar for casing operations.

Technical Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Product Features

Essential component for primary cementing operations in casing equipment
Guides casing to total depth while preventing contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for enhanced structural integrity
Ensures precise cement slurry displacement accuracy
Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
PDC drillable composite plastic valve components
Standard seal rated to 150°C with optional 204°C seal available
Fiber phenolic valve body module withstands 70MPa and 204°C
High-quality Canadian phosphor bronze C510 springs with excellent restoring force
HNBR plunger seal top rated for 70MPa and 204°C operation
