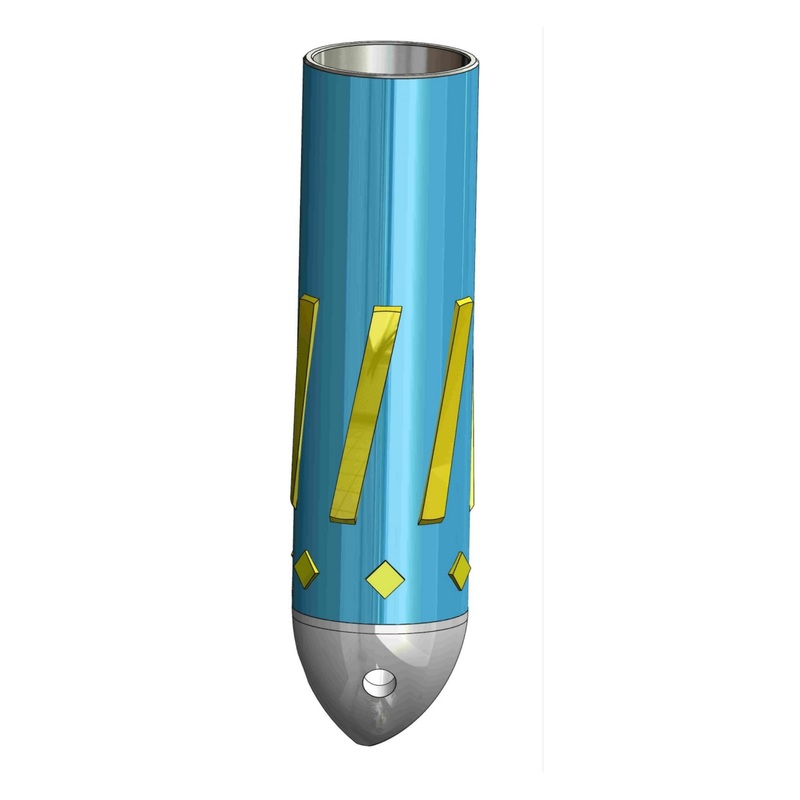

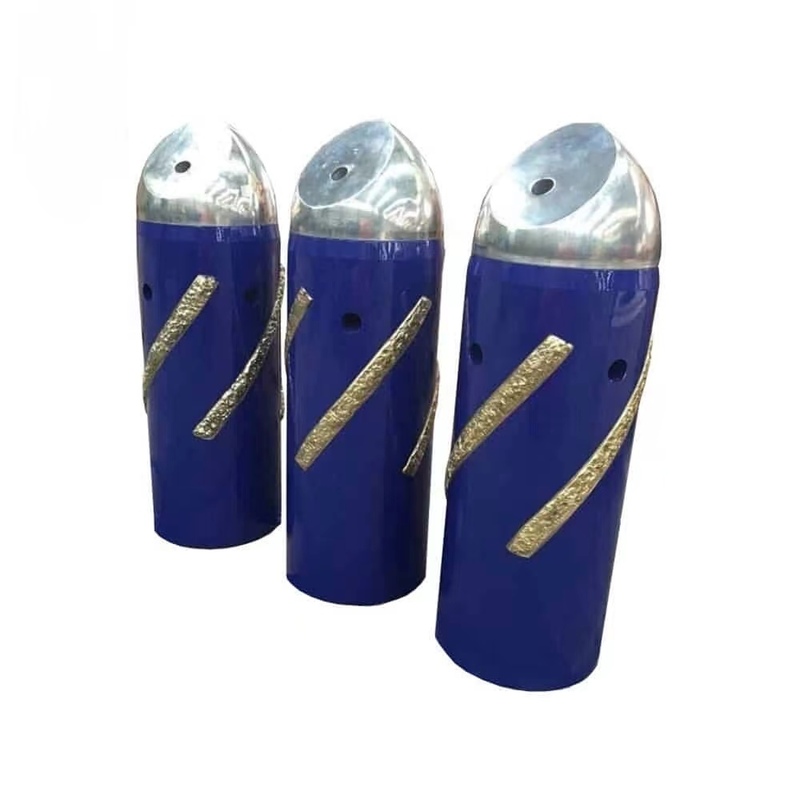

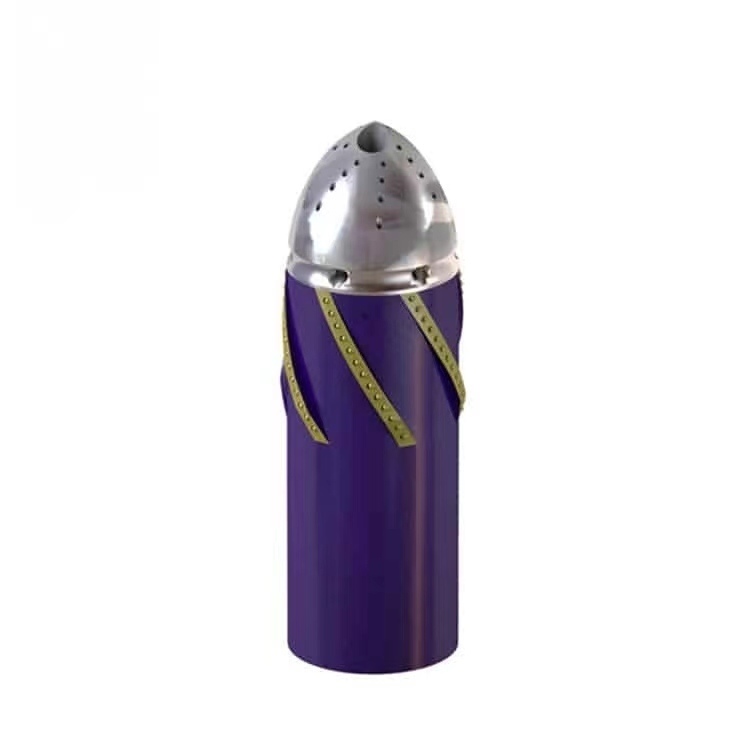

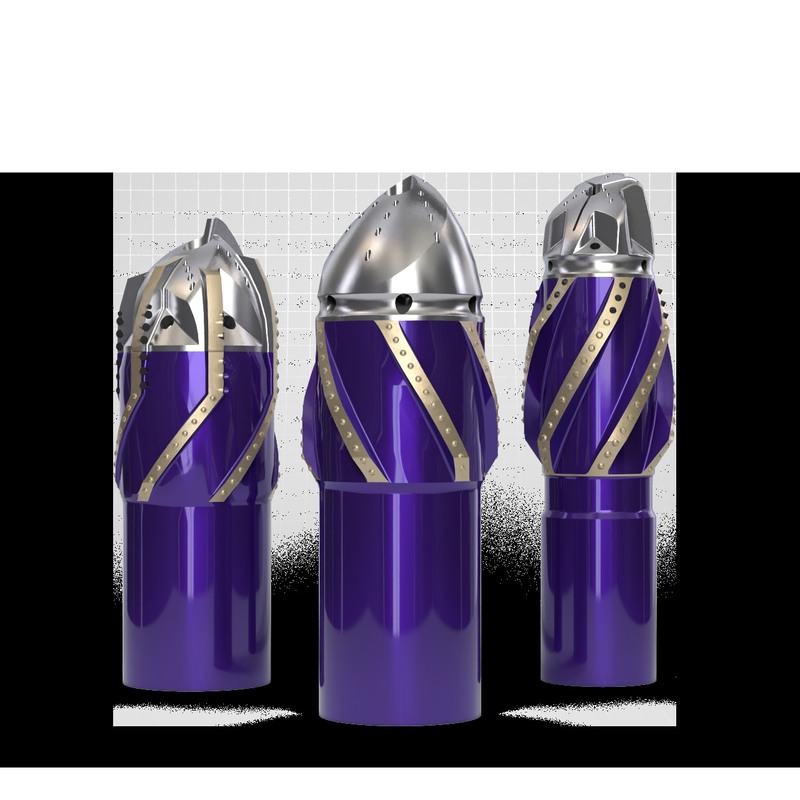

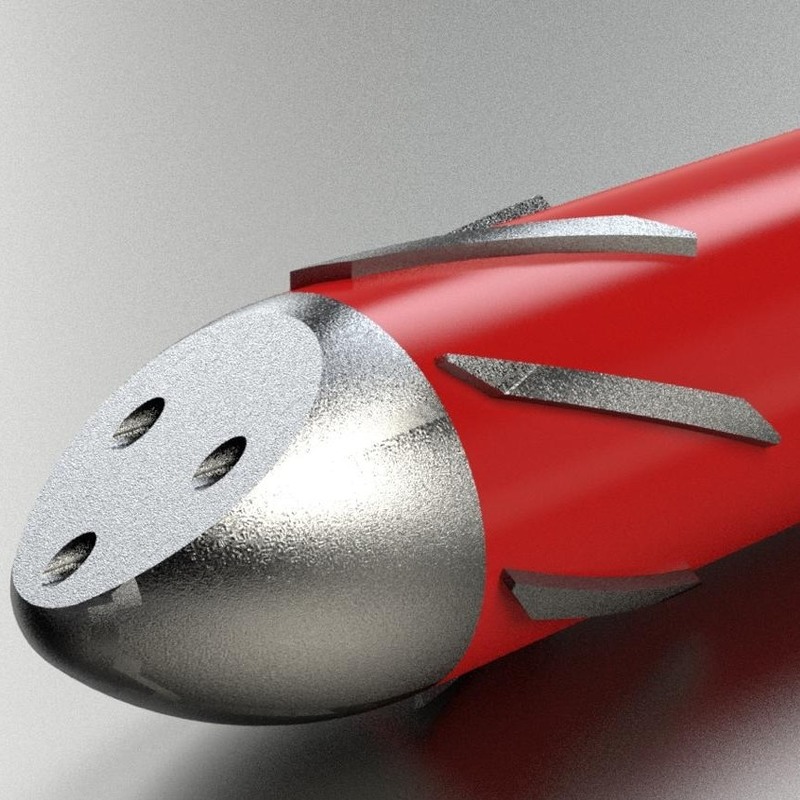

API 5-1/2 139.7mm Carbon Steel Float Shoe for Hand Well Drilling with 70MPa High Flow Valves

API 5-1/2 Float Shoe

139.7mm Cementing Float Equipment

70MPa Nose Float Shoe

Место происхождения:

Цзянсу, Китай

Фирменное наименование:

SWS

свяжитесь мы

Спросите цитату

API 5-1/2 139.7mm Carbon Steel Float Shoe for Hand Well Drilling with 70MPa High Flow Valves

Детали продукта

Измерение:

50*30*30

Масса:

10 кг

Основные компоненты:

Клапан

Тип клапана:

Один клапан и двойной клапан

Тип обработки:

Ковкость

Спецификация:

2-3/8 ~ 20"

Тип потока:

BTC\LTC\ Специальная нить\EU\NU

Сталь:

N80\L80\P110

Загрязняет OD:

6 "

Идентификатор була:

4 3/4"

Мин с надписью:

Тип потока:

5 1/2 "LCSG

Рейтинг давления:

70 МПа

Температурная оценка:

204°C

Размер клапана:

70 мм и 90 мм

Родственные продукты

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

Получите самую лучшую цену

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

Получите самую лучшую цену

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

Получите самую лучшую цену

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

Получите самую лучшую цену

свяжитесь мы

86-519-83553967

Leo@service-js.com

86-519-83553967

Контакт теперь

Характер продукции

API 5-1/2 139.7mm Hand Well Drilling Equipment Float Shoe Carbon Steel Nose Float Shoe

Product Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in2)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Product Description

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

Key Features

Hi Flow valves to reduce fluid erosion and minimize pressure drop
Hi Flow valves are manufactured in two sizes: 70mm and 90mm
PDC drillable composite plastic materials used for the valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fibre phenolic, 70MPa and 204°C seal
Spring purchased from Canada Victory Spring Company, phosphor bronze C510 material, high restoring force and drillable
Plunger seal top molded with HNBR, 70MPa and 204°C seal

Product Images

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, cheaper prices with bigger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by QC department before shipping.

Q5: What about the lead time for the mass production?

A: Honestly, it depends on the order quantity and the season you place the order.
