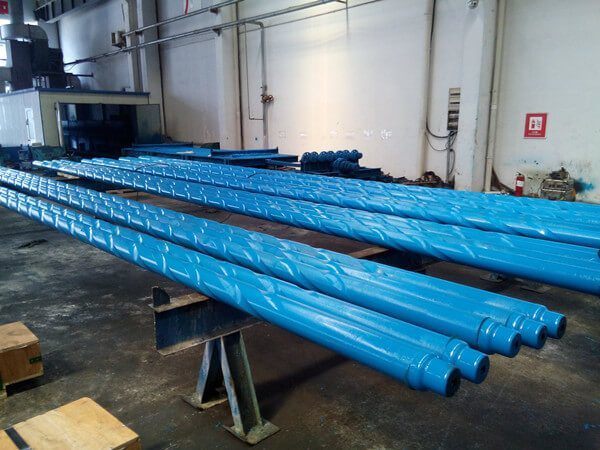

2-13/16 Inch Inside Diameter 6-3/4 Inch Outside Diameter Drill Collar in Oil and Gas Industry

Фирменное наименование:

SWS

свяжитесь мы

Спросите цитату

2-13/16 Inch Inside Diameter 6-3/4 Inch Outside Diameter Drill Collar in Oil and Gas Industry

Детали продукта

Название продукта:

Воротник сверла

Номер и таблица соединений:

NC50-67 ((4-1/2IF)

Внешний диаметр ((дюйм):

6-3/4

Внешний диаметр (mm):

171,4

Внутренний диаметр ((дюйм)):

2-13/16

внутренний диаметр (mm):

71,4

Длина (мм):

9150 или 9450

Диаметр бебеля ((мм):

159.5

Соотношение крепости к изгибу:

2.37:1

Родственные продукты

2-13/16 Inch Inside Diameter 6-3/4 Inch Outside Diameter Drill Collar in Oil and Gas Industry

Получите самую лучшую цену

159.5 mm Bevel Diameter 3.18:1 Bending Strength Ratio 9150 or 9450 mm Length Drill Collar

Получите самую лучшую цену

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment

Получите самую лучшую цену

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

Получите самую лучшую цену

свяжитесь мы

86-519-83553967

Leo@service-js.com

86-519-83553967

Контакт теперь

Характер продукции

COMPANY PROFILE

2-13/16 Inch Inside Diameter 6-3/4 Inch Outside Diameter Drill Collar in Oil and Gas Industry 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

2-13/16 Inch Inside Diameter 6-3/4 Inch Outside Diameter Drill Collar in Oil and Gas Industry 1

CERTIFICATES

PRODUCT DESCRIPTION

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;
